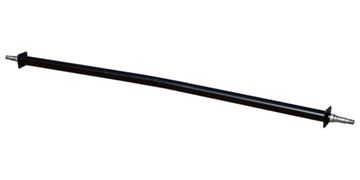

Round tube trailer axle beam. Load capacity: 2000 lbs, track length: 48", tube diameter: 1.75", spring centers: 30" to 30.5", overall length: 52.5", spindle: 1-1/16" straight, unflanged "L" series. Includes axle beam, axle nut, cotter pin and spring seats. No additional hardware or parts are included with this axle.
Round tube trailer axle beam. Load capacity: 2000 Lbs, track length: 54", tube diameter: 1.75", spring centers: 30" to 30.5", overall length: 52.5", spindle: 1-1/16" straight, Unflanged "L" series. Includes axle beam, axle nut, cotter pin and spring seats. No additional hardware or parts are included with this axle.
Round tube trailer axle beam. Load capacity: 2000 Lbs, track length: 60", tube diameter: 1.75", spring centers: 30" to 30.5", overall length: 52.5", spindle: 1-1/16" straight, unflanged "L" series. Includes axle beam, axle nut, cotter pin and spring seats. No additional hardware or parts are included with this axle.
Round tube trailer axle beam. Load capacity: 3,500 Lbs, track length: 60", tube diameter: 2-3/8", spring centers: 42" to 48", overall length: 65", spindle: 1-3/8" to 1-1/16" stepped, Hub used: HSH545. Brake flanged "H" series. Includes axle beam, axle nut, cotter pin and spring seats. No additional hardware or parts are included with this axle.
Round tube trailer axle beam. Load capacity: 2000 Lbs, track length: 64", tube diameter: 1.75", spring centers: 30" to 30.5", overall length: 52.5", spindle: 1-1/16" straight, unflanged "L" series. Includes axle beam, axle nut, cotter pin and spring seats. No additional hardware or parts are included with this axle.
Round tube trailer axle beam. Load capacity: 2000 lbs, track length: 72", tube diameter: 1.75", spring centers: 54" to 62.5", overall length: 76.5", spindle: 1-1/16" straight, unflanged "L" series. Includes axle beam, axle nut, cotter pin and spring seats. No additional hardware or parts are included with this axle.
Round tube trailer axle beam. Load capacity: 2000 lbs, track length: 84", tube diameter: 1.75", spring centers: 66" to 74.5", overall length: 88.5", spindle: 1-1/16" straight, unflanged "L" series. Includes axle beam, axle nut, cotter pin and spring seats. No additional hardware or parts are included with this axle.
$129.99$127.99
When choosing an axle remember to take into consider these specifications:
LOAD CAPACITY: The load capacity of the axle must support the maximum gross vehicle weight rating. For multiple axle trailers divide the GVW by the number of axles to determine the minimum load capacity of each axle.
TRACK LENGTH: Measure your axle track length by determining the distance between the center of one tire to the center of the other tire. A more precise measurement can be made by measuring the distance from one 'HUB FACE' to the other. The hub face is also known as the mounting surface where the wheel studs are located.
SPRING CENTERS: measure the distance from the center of one spring to the center of the other.
OVERALL LENGTH: measure the distance from the very end of an axle's spindle to the very end of the opposite spindle.
