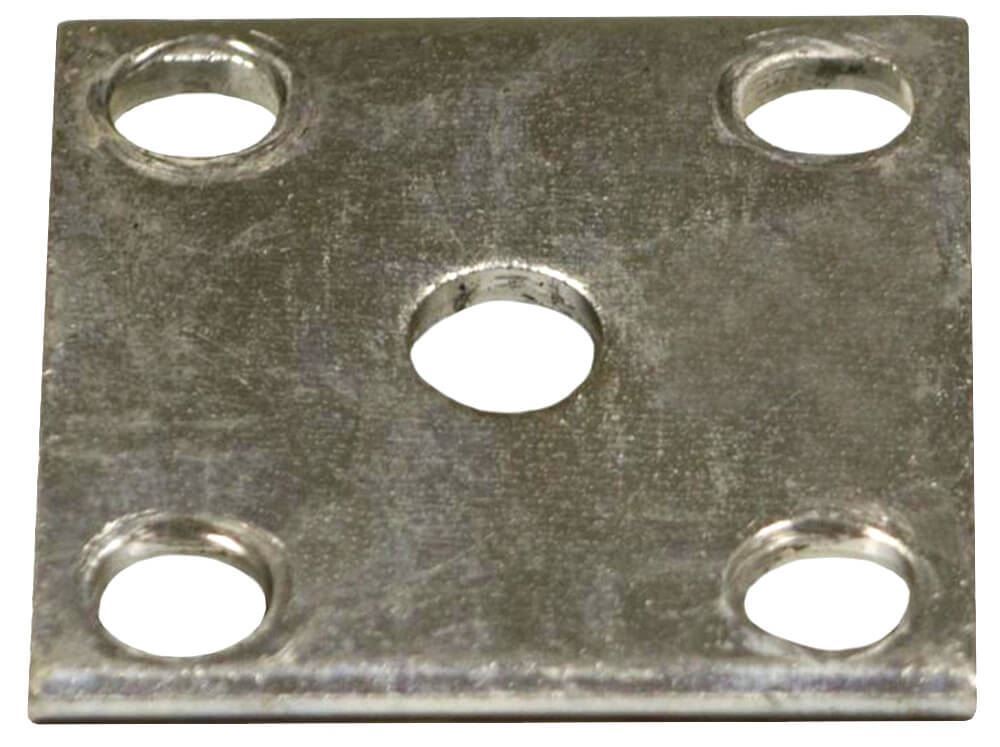

Trailer Axle Tie Plate Sq. Axle, 3.75" by 3.75", Reliable TP-S-220

Manufacturer: Reliable Machine

Trailer axle tie plate for round axle. 3.75" length, 3.75" width, hole centers 2.75", hole diameter 0.5", accepts 1/2" U-bolt. Used together with U-Bolts and nuts to connect the leaf springs to the trailer axle.

SKU: 230050

Manufacturer part number: TP-S-220

Availability: In stock

Old price: $12.99

Price: $5.99

Qty:

i h

Reliable Machine Trailer Axle Tie Plate for Square Axle, part TP-R-220

Axle tie plates, which may also be called U-bolt tie plates, are used together with U-Bolts and nuts to connect the leaf springs to the trailer axle. These are parts of the suspension system of the trailer suspension system.

A Length: 3.75 inches
B Hole Centers Long Side: 2.75 inches
C Hole Centers Short Side: 2.75 inches
D Width: 3.75 inches
Hole Diameter: 0.5 inch
Sold Each

Accepts 1/2 inch U-bolt

trailer axle tie plate dimensions

Reliable Machine has been providing quality machining, welding, and assembled products since 1946. Serving the construction, trailer, lawn care and agriculture industries.

Reliable Machine Trailer Axle Tie Plate for Square Axle, part TP-R-220

A Length: 3.75 inches
B Hole Centers Long Side: 2.75 inches
C Hole Centers Short Side: 2.75 inches
D Width: 3.75 inches
Hole Diameter: 0.5 inch
Sold Each

Accepts 1/2 inch U-bolt

trailer axle tie plate dimensions

Reliable Machine has been providing quality machining, welding, and assembled products since 1946. Serving the construction, trailer, lawn care and agriculture industries.

Products specifications

Length	3.75 inches
Width	3.75 inches
Width - Hole Centers	2.75 inches
Length - Hole Centers	2.75 inches
