    25" Sachs/Stabilus Universal Lift Support SG226034

    Manufacturers: Stabilus , Sachs , Lift-O-Mat

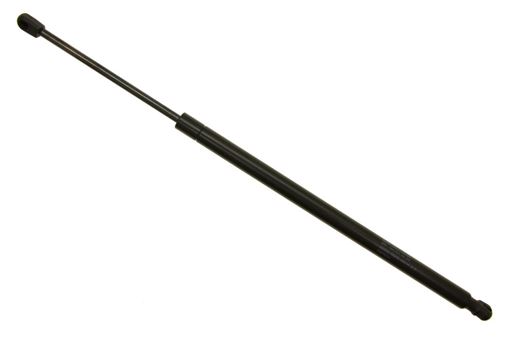

    Universal gas prop/lift support part SG226034 by Sachs/Stabilus
    SKU: SG226034
    Manufacturer part number: SG226034
    $30.99
    $25.99
    i h

    Universal gas prop/strut/lift support by Sachs, also banded as Stabilus and lift-o-mat.

    This is for a single (1) unit.  If the props are used in pairs, we highly recommend to also replace them in pairs to avoid potential problems and for best performance.

    Typical applications may be Truck Caps, Campers, Tonneua Covers, Marine, Toolbox,  Industrial, Furniture and more.

    if a matching part numer is not available, identify the correct replacement prop measure extended and compressed length (eyelet to eyelet) and indentify the pressure.  For further assistance, please feel free to contact us.

    Universal gas prop/strut/lift support by Sachs, also banded as Stabilus and lift-o-mat.

    This is for a single (1) unit.  If the props are used in pairs, we highly recommend to also replace them in pairs to avoid potential problems and for best performance.

    Typical applications may be Truck Caps, Campers, Tonneua Covers, Marine, Toolbox,  Industrial, Furniture and more.

    if a matching part numer is not available, identify the correct replacement prop measure extended and compressed length (eyelet to eyelet) and indentify the pressure.  For further assistance, please feel free to contact us.

    Products specifications
    End Fittings 10 mm Ball Socket, Plastic
    Extended Size 24.84 inches
    Compressed Size 16.7 inches
    Pressure 140 lbs.
    End Fittings Ball Socket
    Compressed Length (In) 16.712 Inch
    Extended Length (In) 24.803 Inch
    Lower Mount Type Ball Socket
    Rod Diameter (In) 0.393 Inch
    Travel Length (In) 6.496 Inch
    Tube Diameter (In) 0.866 Inch
    UPC 708609588515
    Upper Mount Type Ball Socket
