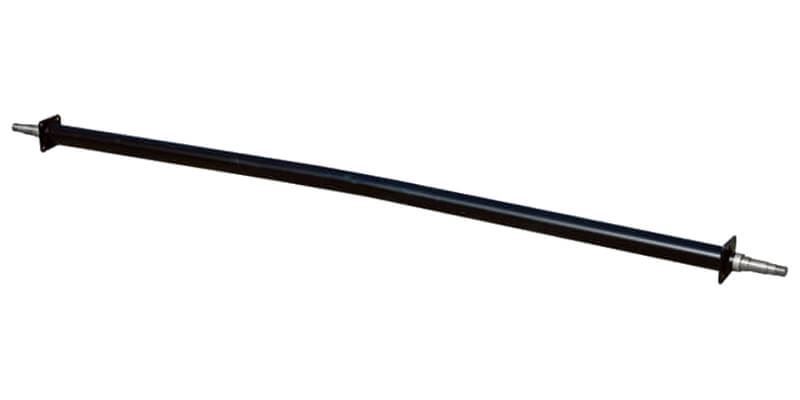

72" Round Trailer Axle, 3500 Lb load, Stepped Spindle, Reliable SP-3500-72

Reliable Tool & Machine 72" Round Trailer Axle, part SP-3500-72

The Round Tuble Trailer Axle Beam acts as part of your trailer's suspension system and features a high-strength steel construction. This axle fits the 5 bolt hub part HSH545 (sold separately).

Specs:

• Load Capacity: 3,500 Lbs
• Track Length: 72" (hub face to hub face)
• Tube Diameter: 2-3/8"
• Spring center flange: 54" to 60"
• Overall length: 77"
• Spindle: 1-3/8" to 1-1/16", stepped
• Hub used: HSH545
• Brake Flanged "H" Series

Included:

• Axle Beam
• Hardware:

  • Axle Nut - attached
  • Cotter Pin - attached
  • Spring Seats - loose, can be mounted over or under

Note:

The axle must be installed with center bow up. The center bow exists until weight is put on the axle.
Includes spring seats (loose) you can mount over or under and axle nut and cotter pin attached.

Reliable Machine has been providing quality machining, welding, and assembled products since 1946.  Serving the construction, trailer, lawn care and agriculture industries.
